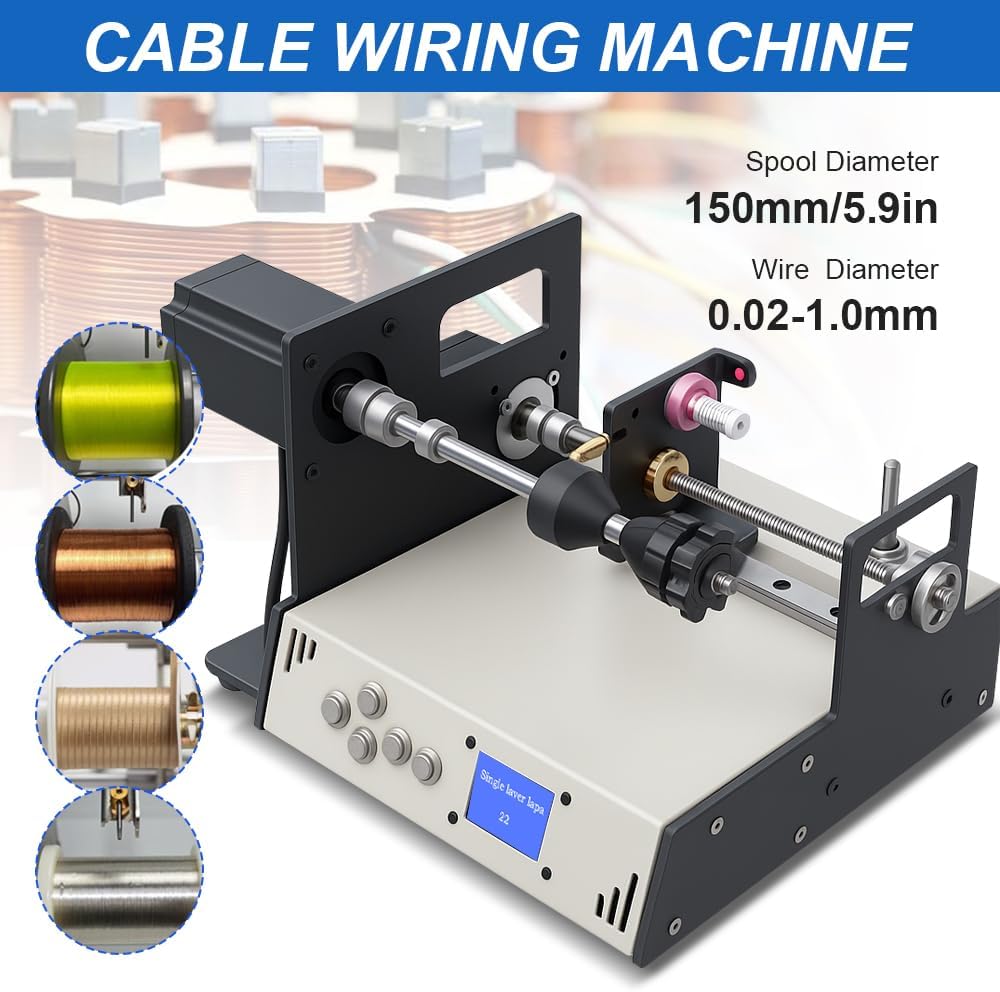

US in Stock Cable Wiring coil winding Machine Automatic Tube Amplifier Winding Machine Industrial Grade Coil Tape Fishing Line Winder(110V)
4.8 (19 items)
Limited Time SaleUntil the end
21
49
12
$179.99 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New $299.99
Product details
| Management number | 219202301 | Release Date | 2026/05/03 | List Price | $120.00 | Model Number | 219202301 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Automatic wire arranging and winding machine, capable of winding coils, tapes, threads, and fishing lines with a 4mm thick steel base, ready to use upon hand. The slide table precision is 0.01mm, and the winding diameter is 0.02mm-1.0mm.
- The main motor has a torque of 2.3nm, supports a spool diameter of 15cm, and a left and right cable width of 10cm. By inputting parameters, the program intelligently realizes coarse and fine adjustments, with a simple and intuitive Chinese display. The speed can be adjusted and the winding direction can be adjusted. The winding can be paused at any time, and the winding parameters are automatically saved. The wiring is precise, with high quality and low cost,
- Set as many circles as needed, specify the number and length of each layer, and don't worry about the rest. The program calculates everything, such as a total of 1000 circles, 100 circles per layer, and 40mm per layer
- The left and right buttons can flip to different functional pages, and the up and down buttons can adjust the values of the corresponding functional pages. After adjustment, it will be automatically saved in real time.
- Press the start button again to pause, press and hold for 5 seconds to clear the current set of coil completion values, and restart from 0.
- After turning on the machine with absolute zero and relative zero, the wiring harness defaults to searching for absolute zero to the left, so the infrared locator must be placed on the left side of the wiring harness. Otherwise, it may lead to errors.
- Relative zero point: It is the starting point of the coil winding. After the machine automatically finds the absolute zero point, it will reach the relative zero point and prepare to start a set of winding processes.
| Color | white |
|---|---|
| Material | NO |
| Brand Name | LABFENG |
| Unit Count | 1.0 Count |
| Is Electric | Yes |
| Item Weight | 5 Pounds |
| Model Number | ltao1018202767 |
| Power Source | ac |
| Input Voltage | 110 Volts (AC) |
| Included Components | NO |
| Item Dimensions D x W x H | 11"D x 7"W x 11"H |
