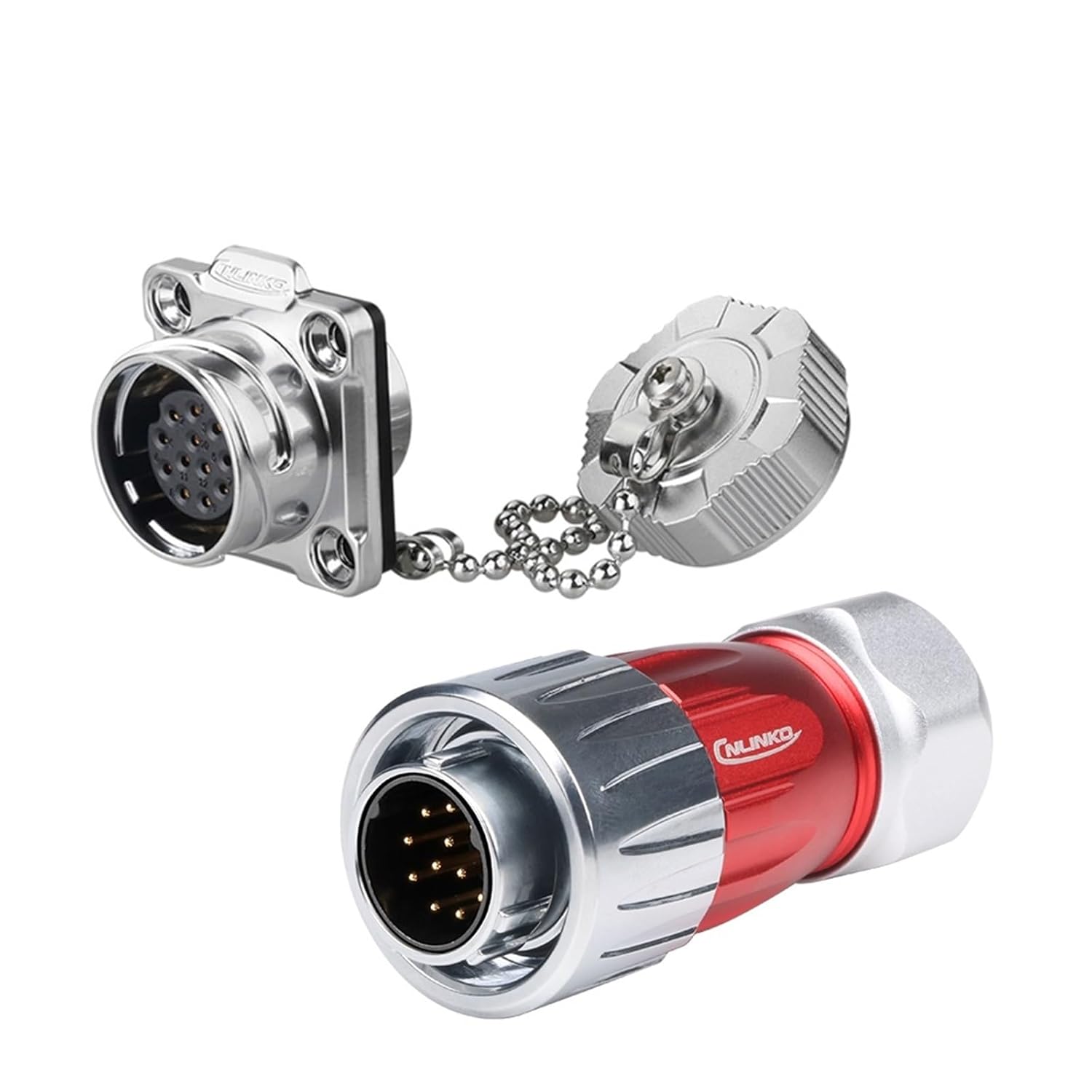

1Pcs DH20 Waterproof Quick Connect Industrial Connector Full Metal Electrical Soldering Terminal Connector for Solar Panel(12 Pin Set)

Electrical ConnectorDH20 Waterproof Quick Connect Industrial Connector Full Metal Electrical Soldering Terminal Connector for Solar PanelDH-20 series electrical connectors IP681. Three positioning, as wave spring knob, the outer ring card point locking snap engaged with the socket, making the connection operation for the and socket be more simple and convenient, uniform intensity engaging, and keeping the current and signal transmission more stable.2. Using wave spring structure, so that elastic wave spring stranded automatically when connect the and socket.3. Copper needle retainer , so that copper welding operations and install socket were separated, thus solve up limited operating environments from install to then welding.4. Using outer alloy ring, keeping the and socket more stable in the closed state, making the power supply or signal transmission more stable and comparable while connection.5. Using tail jaws design, to tighten the wire more effective, twisted more effective too, improving the product waterproof rating and tensile strength requirements, and prevent the nut back effectively.6. Waterproof clip coil , so that the products have better waterproof rating when closed.7. Waterproof IP68 while connection.==========Hign-concerned Chemical : NoneModel Number : DH-20Color : Red and silverWorking Voltage : 250V~300VRated current : 5A~20APins : 2/3/4/5/7/9/12 PinWire assembly : SolderingCopper needle : Gold platedHousing : Zinc alloyPlastic part : PBT plasticCable specification(2~4pin) : 2.5~4.0mm²/14~12AWGCable specification(5~7pin) : 1.0~1.5mm²/ 18~16AWGCable specification(9~12pin) : 0.34~0.5mm²/22~20AWGDiameter range(2~9pin) : 10.0~12mmDiameter range(12pin) : 5.0~6.5mm

• 1Pcs DH20 Waterproof Quick Connect Industrial Connector Full Metal Electrical Soldering Terminal Connector for Solar Panel
